Unity組件：Mesh Renderer 網格渲染器

The Mesh Renderer takes the geometry from the Mesh Filter and renders it at the position defined by the object's Transform component.

網格渲染器從網格過濾器獲得幾何形狀，并且根據物體的Transform組件的定義位置進行渲染。

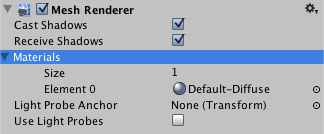

Properties 屬性

• Cast Shadows (Pro only)
  投射陰影（僅專業版）
  If enabled, this Mesh will create shadows when a shadow-creating Light shines on it
  如果啟用，當創建光照陰影時Mesh將會創建陰影。
• Receive Shadows (Pro only)
  接受陰影（僅專業版）
  If enabled, this Mesh will display any shadows being cast upon it
  如果啟用，網格將會顯示對他的任何投射的陰影。
• Materials 材質列表
  A list of Materials to render model with
  渲染模型的材質列表。
• Light Probe Anchor
  燈光探測錨
  A Transform used to determine the interpolation position when the light probe system is used
  當使用光探測系統時，Transform用于決定插值的位置。
• Use Light Probes
  使用光探測器
  Enable probe-based lighting for this mesh
  對網格啟用基于探測器的照明。

Details 細節

Meshes imported from 3D packages can use multiple Materials. For each Material there is an entry in Mesh Renderer's Materials list.

網格從3D軟件中導入可以使用多種材質，每種材質可以從網格渲染器的材質列表進入。

A mesh can receive light from the light probe system if the Use Light Probes option is enabled (see the light probes manual page for further details). A single point is used as the mesh's notional position for light probe interpolation. By default, this is the centre of the mesh's bounding box, but you can override this by dragging a Transform to the Light Probe Anchor property. It may be useful to set the anchor in cases where an object contains two adjoining meshes; since each mesh has a separate bounding box, the two will be lit discontinuously at the join by default. However, if you set both meshes to use the same anchor point, they will be consistently lit.

如果Use Light Probes選項被啟用，網格可以接受燈光探測系統光照（參見燈光探測器手冊頁面進一步閱讀）。單個點被用作與光照探測插值上網格的理論位置。默認情況下，這是網格的邊界框的中心，但是你可以通過拖拽Transform對象到Light Probe Anchor屬性進行重寫。他在一個對象包含兩個相鄰的網格中設置錨這種情況下很有用， 但是，如果你使用相同的錨點設置來設置這兩個網格，他們將會持續點亮。
