Unity組件：Mesh Collider 網格碰撞器

The Mesh Collider takes a Mesh Asset and builds its Collider based on that mesh. It is far more accurate for collision detection than using primitives for complicated meshes. Mesh Colliders that are marked as Convex can collide with other Mesh Colliders.

網格碰撞器利用一個網格資源并在其上構建碰撞器。對于復雜網狀模型上的碰撞檢測，它要比應用原型碰撞器精確的多。標記為凸起的（Convex ）的網格碰撞器才能夠和其他網格碰撞器發生碰撞。

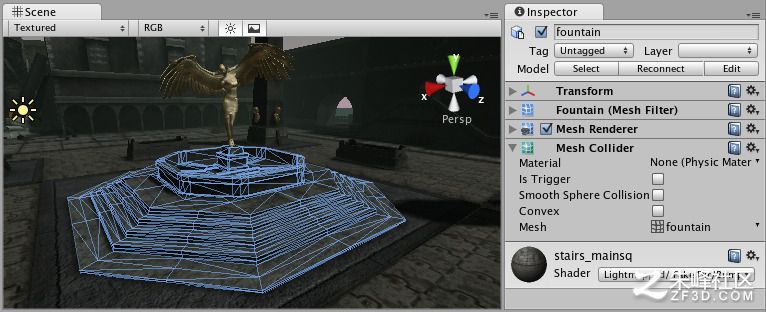

A Mesh Collider used on level geometry 用于臺階狀物體的網格碰撞器

Properties 屬性

• Material 材質
  Reference to the Physic Material that determines how this Collider interacts with others.
  引用何種物理材質決定了他和其他對象如何作用。
• Is Trigger 是否觸發器
  If enabled, this Collider is used for triggering events, and is ignored by the physics engine.
  如激活，此碰撞器用于觸發事件，并且被物理引擎忽略。
• Mesh 網格
  Reference to the Mesh to use for collisions.
  用于碰撞所引用的網格
• Smooth Sphere Collisions
  平滑性狀碰撞
  When this is enabled, collision mesh normals are smoothed. You should enable this on smooth surfaces eg. rolling terrain without hard edges to make sphere rolling smoother.
  當被激活，碰撞網格法線是平滑的。用于平滑表面比如由沒有棱角的平滑起伏組成的起伏地標時應該激活。
• Convex 凸起的
  If enabled, this Mesh Collider will collide with other Mesh Colliders. Convex Mesh Colliders are limited to 255 triangles.
  如激活，該網格碰撞器將會和其他網格碰撞器碰撞。凸起的網格碰撞器限制在255個三角形面內。

Details 細節

The Mesh Collider builds its collision representation from the Mesh attached to the GameObject, and reads the properties of the attached Transform to set its position and scale correctly.

網格碰撞器通過附加在游戲?qū)ο笊系木W(wǎng)格構建碰撞效果，并嚴格按照所附加對象的Transform屬性來設定其位置和大小比例。

Collision meshes use backface culling. If an object collides with a mesh that will be backface culled graphically it will also not collide with it physically.

碰撞網格使用背面剔除（或譯背面揀選，指正面多邊形擋住了在它后面的背面多邊形,Direct3D將通過揀選(即刪除多余的處理過程)背面多邊形來提高效率的過程。）如果一個對象和被背面剔除的網格碰撞，那也不會在物理上碰撞。

There are some limitations when using the Mesh Collider. Usually, two Mesh Colliders cannot collide with each other. All Mesh Colliders can collide with any primitive Collider. If your mesh is marked as Convex, then it can collide with other Mesh Colliders.

使用網格碰撞器有一些限制條件。通常，兩個網格碰撞器之間不會發生碰撞。所有的網格碰撞器可以和任何原型碰撞器碰撞。如果網格標記為凸起的（Convex），那么就可以和其他網格碰撞器碰撞。

Colliders work with Rigidbodies to bring physics in Unity to life. Whereas Rigidbodies allow objects to be controlled by physics, Colliders allow objects to collide with each other. Colliders must be added to objects independently of Rigidbodies. A Collider does not necessarily need a Rigidbody attached, but a Rigidbody must be attached in order for the object to move as a result of collisions.

碰撞器作用于剛體使Unity中的物理作用生效。因?yàn)閯傮w允許對象被物理系統控制。碰撞器使對象之間產生碰撞作用。碰撞器必須獨立于剛體加在對象上。碰撞器并不一定需要附加剛體，但是要使移動物體具有碰撞效果必須附加剛體。

When a collision between two Colliders occurs and if at least one of them has a Rigidbody attached, three collision messages are sent out to the objects attached to them. These events can be handled in scripting, and allow you to create unique behaviors with or without making use of the built-in NVIDIA PhysX engine.

當兩個碰撞器間產生碰撞并且其中至少一個附加了剛體時，三個碰撞信息會發送給附加他們的對象，這些事件可以被腳本處理，而且允許用戶可以選擇自己寫腳本或使用內置的NVIDIA PhysX引擎創建唯一的行為。

Triggers

An alternative way of using Colliders is to mark them as a Trigger, just check the IsTrigger property checkbox in the Inspector. Triggers are effectively ignored by the physics engine, and have a unique set of three trigger messages that are sent out when a collision with a Trigger occurs. Triggers are useful for triggering other events in your game, like cutscenes, automatic door opening, displaying tutorial messages, etc. Use your imagination!

一個可供選擇的碰撞器使用方法是標記他們?yōu)橛|發器，僅需要選中檢視面板中的IsTrigger屬性選擇框。觸發器不受物理引擎控制，當和一個觸發器發生碰撞時會發出三個獨特的觸發信息。觸發器用于觸發你游戲中的其他事件，比如過場動畫、自動門開啟、顯示教程信息等等，發揮你的想象力吧！

Be aware that in order for two Triggers to send out trigger events when they collide, one of them must include a Rigidbody as well. For a Trigger to collide with a normal Collider, one of them must have a Rigidbody attached. For a detailed chart of different types of collisions, see the collision action matrix in the Advanced section below.

當然也應該意識到為了使兩個觸發器碰撞時發出碰撞事件，其中一個必須包含剛體。一個觸發器和一個普通碰撞器碰撞，其中之一必須附加剛體。想了解不同類型碰撞的詳細情況，可以參考下邊進階部分中的碰撞行為矩陣。

Friction and bouncyness 摩擦力和彈力

Friction, bouncyness and softness are defined in the Physic Material. The Standard Assets contain the most common physics materials. To use one of them click on the Physic Material drop-down and select one, eg. Ice. You can also create your own physics materials and tweak all friction values.

摩擦力、彈力和柔軟度由物理材質中定義。標準資源（ Standard Assets）中包含了大部分常見的物理材質。要使用只需點擊物理材質上的下拉箭頭然后選中一個，比如冰。你也可以創建你自己的物理材質并調整摩擦力的大小。

Hints 提示

• Mesh Colliders cannot collide with each other unless they are marked as Convex. Therefore, they are most useful for background objects like environment geometry.
  除非被標記為凸起的（Convex），否則網格碰撞器間不會發生碰撞。因此，它們最常被用于背景對象比如環境布景。
• Convex Mesh Colliders must be fewer than 255 triangles.
  凸起的網格碰撞器含有的三角形面不能多于255個。
• Primitive Colliders are less costly for objects under physics control.
  原型控制器對于對象的物理控制更加節省資源。
• When you attach a Mesh Collider to a GameObject, its Mesh property will default to the mesh being rendered. You can change that by assigning a different Mesh.
  當為游戲?qū)ο蟾郊恿司W(wǎng)格碰撞器，其網格屬性將被定義為用于渲染的網格，可以通過指派其他網格來改變。
• To add multiple Colliders for an object, create child GameObjects and attach a Collider to each one. This allows each Collider to be manipulated independently.
  要給一個對象添加多個碰撞器，應該創建子對象并給每個子對象添加一個碰撞器。這使每個碰撞器可以被單獨操作。
• You can look at the gizmos in the Scene View to see how the Collider is being calculated on your object.
  可以通過場景視圖（Scene View ）中的線框來查看碰撞器在你的對象上的預期效果。
• Colliders do their best to match the scale of an object. If you have a non-uniform scale (a scale which is different in each direction), only the Mesh Collider can match completely.
  碰撞器盡量匹配對象的比例。如果有一組不規則伸縮（每一維度上的比例都不相同），只能使用網格碰撞器才能完全匹配。
• If you are moving an object through its Transform component but you want to receive Collision/Trigger messages, you must attach a Rigidbody to the object that is moving.
  如果你想接收通過Transform組件移動的對象的碰撞/觸發信息，你必須給移動對象附件剛體。

Advanced 進階

Collider combinations 碰撞器組合

There are numerous different combinations of collisions that can happen in Unity. Each game is unique, and different combinations may work better for different types of games. If you're using physics in your game, it will be very helpful to understand the different basic Collider types, their common uses, and how they interact with other types of objects.

Unity中有許多不同的碰撞組合。每個游戲都很獨特，不同的組合可能更好地適用于不同類型的游戲。如果你在游戲中使用了物理效果，那理解不同的基本碰撞類型會很有幫助，包括它們的常用形式及如何和其他類型的對象作用。

Static Collider 靜態碰撞器

These are GameObjects that do not have a Rigidbody attached, but do have a Collider attached. These objects should remain still, or move very little. These work great for your environment geometry. They will not move if a Rigidbody collides with them.

指的是沒有附加剛體而附加了碰撞器的游戲?qū)ο蟆＿@類對象會保持靜止或者很輕微的移動。對于環境模型十分好用，當和剛體碰撞時而不會移動。

Rigidbody Collider 剛體碰撞器

These GameObjects contain both a Rigidbody and a Collider. They are completely affected by the physics engine through scripted forces and collisions. They might collide with a GameObject that only contains a Collider. These will likely be your primary type of Collider in games that use physics.

指的是同時附加了剛體和碰撞器的游戲?qū)ο�。通過腳本的力量和碰撞完全受物理引擎的影響�？梢院椭话�含碰撞器的游戲?qū)ο笈鲎�。將�?huì)成為你游戲中使用物理效果的基本類型碰撞器。

Kinematic Rigidbody Collider 運動學剛體碰撞器

This GameObject contains a Collider and a Rigidbody which is marked IsKinematic. To move this GameObject, you modify its Transform Component, rather than applying forces. They're similar to Static Colliders but will work better when you want to move the Collider around frequently. There are some other specialized scenarios for using this GameObject.

指的是同時包含碰撞器和剛體，并且激活I(lǐng)sKinematic的一類游戲?qū)ο螅�要移�?dòng)這類游戲?qū)ο�，要修改它的Transform組件，而不是用力。它們很像靜態碰撞器不過對于想要不停地到處移動的碰撞器很好用。這類游戲?qū)ο筮�有許多其他的獨特使用情景。

This object can be used for circumstances in which you would normally want a Static Collider to send a trigger event. Since a Trigger must have a Rigidbody attached, you should add a Rigidbody, then enable IsKinematic. This will prevent your Object from moving from physics influence, and allow you to receive trigger events when you want to.

這類對象可以用于你通常希望用靜態碰撞器發出觸發事件的情形下。因?yàn)橛|發器必須要有剛體，你應該添加剛體然后啟用IsKinematic。這會阻止你的對象因物理作用而移動并且允許接收你希望得到的觸發事件。

Kinematic Rigidbodies can easily be turned on and off. This is great for creating ragdolls, when you normally want a character to follow an animation, then turn into a ragdoll when a collision occurs, prompted by an explosion or anything else you choose. When this happens, simply turn all your Kinematic Rigidbodies into normal Rigidbodies through scripting.

運動學剛體啟用與否很容易控制。這對創建人偶十分適用，通常，當你希望一個角色依照動畫活動，然后由于爆炸或者其他你選擇的情況而引起的碰撞導致其變?yōu)槿伺�。這種情況下，很簡單，只需要通過腳本將運動學剛體改為普通剛體。

If you have Rigidbodies come to rest so they are not moving for some time, they will "fall asleep". That is, they will not be calculated during the physics update since they are not going anywhere. If you move a Kinematic Rigidbody out from underneath normal Rigidbodies that are at rest on top of it, the sleeping Rigidbodies will "wake up" and be correctly calculated again in the physics update. So if you have a lot of Static Colliders that you want to move around and have different object fall on them correctly, use Kinematic Rigidbody Colliders.

如果有剛體有時候變得靜止不動了，那么它們就是進入休眠了。意味著它們將不受物理變化影響，也就不會移動。如果你把一個運動學剛體從一個休眠的普通剛體下邊移走，那休眠的剛體就會被喚醒并重新被物理變化時時影響。所以如果你有許多希望四處移動并有不同的對象要恰好砸到它們的靜態碰撞器，那就用運動學剛體碰撞器吧。

Collision action matrix 碰撞行為矩陣

Depending on the configurations of the two colliding Objects, a number of different actions can occur. The chart below outlines what you can expect from two colliding Objects, based on the components that are attached to them. Some of the combinations only cause one of the two Objects to be affected by the collision, so keep the standard rule in mind - physics will not be applied to objects that do not have Rigidbodies attached.

基于兩個碰撞對象的配置，可以產生很多不同的效果。下表概括了基于附加不同組件的兩個碰撞對象所產生的效果。其中有些組合只能導致碰撞的兩個對象中的一個受到影響，.所以考慮到保持標準的規則-物理效果將不會對沒有附加剛體的對象生效。

Layer-Based Collision Detection 基于層的碰撞檢測

In Unity 3.x we introduce something called Layer-Based Collision Detection, and is that you can now selectively tell Unity GameObjects to collide with specific layers they are attached to. For more info, you can click here

在Unity3以后版本，我們介紹了一種稱為"基于層的碰撞檢測"（Layer-Based Collision Detection）的東西，可以讓你有選擇地控制Unity對象和他們附加的特定層碰撞。點擊此處獲取更多信息。
