制作美女戰士

在本教程中，我將展示我的建模過程，我將演示如何實現令人滿意的結果。 我已經測試了不同的風格，最終確定的字符，當我決定做我沒有參考它在3D，我最大的參考基準是一些2D插圖。

In this tutorial I'll show how was my modeling process, I will show how was the evolution to achieve a satisfactory result. I have tested different styles before finalizing the character, I had no reference of it in 3D when I decided to do and my biggest base of references was some 2D illustrations.

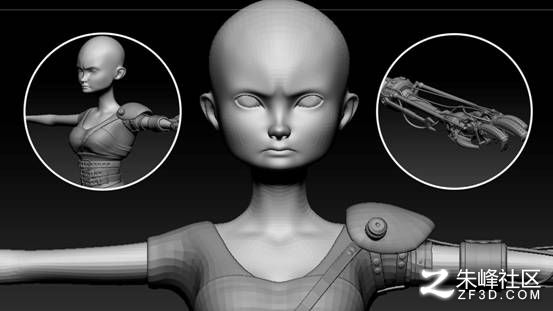

Blocking in ZBrush

Blocking in ZBrush is a key part of my process; I like to transfer my ideas quickly and basically from my head onto the screen, I find this saves me time and I don't have to redo it later. I like to work with a low model even in ZBrush, for this I usually use the DynaMesh with a maximum of three subdivisions; using brushes such as Clay Buildup, Dam-Standard and Move.

在ZBrush中阻塞

阻塞在ZBrush是我的過程的關鍵部分; 我喜歡將我的想法迅速轉移，基本上從我的頭到屏幕上，我發現這可以節省我的時間，我不必重做以后。 我喜歡使用低模型，即使在ZBrush，因?yàn)槲彝ǔＪ褂肈ynaMesh最多三個細分; 使用諸如Clay Buildup，Dam-Standard和Move等畫筆。

Topology and UVs

While still in ZBrush, I decimated the model and brought it into 3ds Max to start creating topology, I used the tools on 3ds Max. After the topology was done, it was time to start the UVs. Again I used ZBrush to create the UVs faster results.

拓?fù)浜蚒V

雖然仍然在ZBrush，我抽取了模型，并把它帶入3ds Max開始創建拓?fù)�，我使用�?ds Max上的工具。 在拓?fù)浣Y(jié)束后，是時候啟動UV。 我再次使用ZBrush創建UVs更快的結果。

Texturing

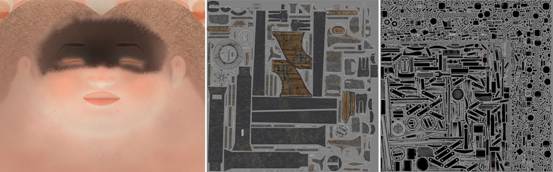

I exported the objects as OBJs and sent them to Mudbox. I decided to use Mudbox as my main texturing software because of the ease of transitioning between 3ds Max and Mudbox. In Mudbox I normally paint my textures by hand.

紋理

我將對象導出為OBJ并將其發送到Mudbox。 我決定使用Mudbox作為我的主要紋理軟件，因?yàn)樵?ds Max和Mudbox之間輕松轉換。 在Mudbox中，我通常用手繪制我的紋理。

Wires and Hair

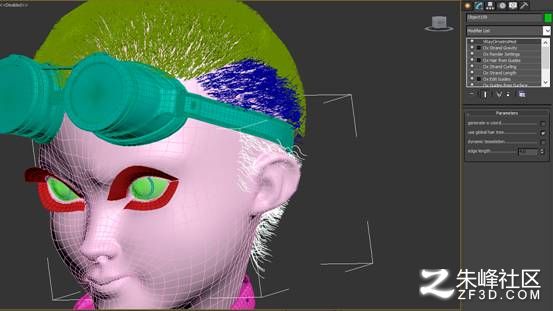

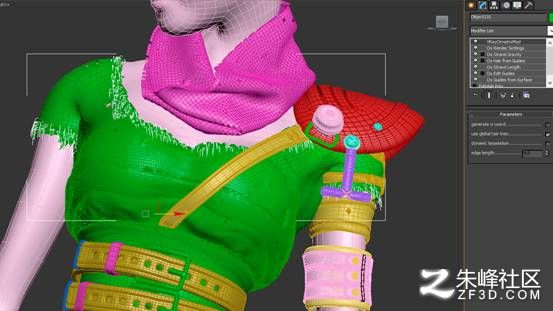

Hair, So I made separate shapes for the hair: one for the head, another for the clothes, Ornatrix V4 helped me a lot in this process, still undergoing tests, got a good result simulating wires in the clothes and a short hair.

真絲和頭發

頭發，所以我為頭發做了單獨的形狀：一個是頭，另一個是衣服，Ornatrix V4幫助了我很多在這個過程中，仍在測試，在衣服仿真絲和短頭發取得了良好的效果。

Lights

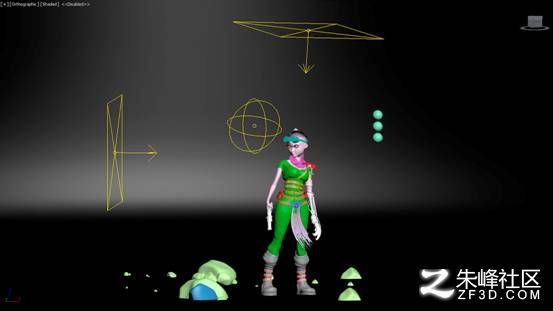

The lighting in this scene is very simple. The lighting is a very important element that could be used to the final result of the image. I researched scenes from the movie, other artists' work, paintings and anything that has similar colors that I wish to project. I experiment a lot to find the best way to show the final image. I just used three lights for this project.

照明

這個場景中的照明非常簡單。 照明是一個非常重要的元素，可以用于圖像的最終結果。 我研究了電影中的場景，其他藝術家的作品，繪畫和任何有類似顏色，我想投影。 我實驗了很多，找到最好的方式來顯示最終的圖像。 我剛剛為這個項目使用了三個燈。

Render

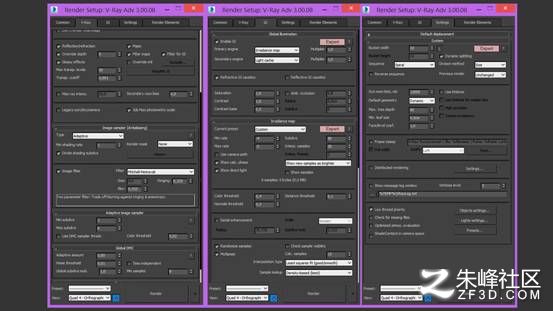

I used V-Ray to render the scene. With three lights in my scene, consisting of two main light sources; yellow being the main light and another blue light providing the rim lighting. The render took about 25 minutes in the size of 3000px, I did not do a render in passes.

渲染

我使用V-Ray渲染場景。 在我的場景中有三個燈，包括兩個主光源。黃色是主光，另一個藍色光提供邊緣照明。 渲染花了大約25分鐘的大小3000px，我沒有做一個渲染的傳球。
