制作小馬“安東尼”

大家好，這是我的角色Antonio的一個制作過程，但它更多的是我在制作過程中拍攝的一系列照片，一些截圖，加上一個視頻和無聊的文本。

Hi all, this is kind of a "Making Of" for my character Antonio but it's more a bunch of renders I took while making it, and a few screenshots, plus a video and boring text.

這個角色是在2005年5月使用Blender 2.36創建的。紋理是用Photoshop制作的(我很慚愧)。當我做安東尼的時候，我不知道我會做成功(這是我第一次做這樣的文章)，所以有些部分被重新建模了。

This character was created using Blender 2.36, in May 2005. The textures are mouse-made using Photoshop (shame on me). When I was making Antonio I didn't know that I would be doing a making of (this is my first time at doing this kind of article), so some parts have been re-modelled.

我從一個預設的立方體開始，然后使用“細分平滑”，擠壓做成頭部的形狀，當一般形狀完成時，我從眼睛開始，對我來說，眼睛是賦予模特個性最重要的東西之一，所以它們是我塑造一個角色首先要做的一件事。請注意，我從一開始就一直啟用SubSurf，而且也沒有使用鏡像。

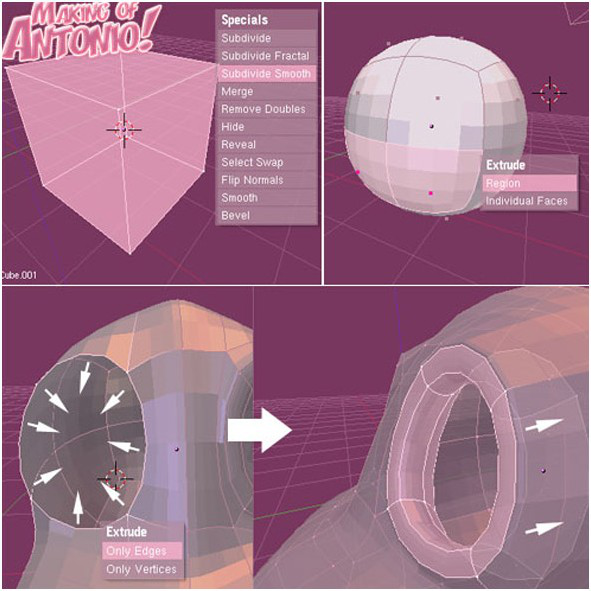

I started with a default cube, then used "Subdivide Smooth", and extruding to make the shape of the head, when the general shape was done, I started with the eyes, for me, the eyes are one of the most important things to giving personality to a model, so they are the first things I do when making a character. Note that I have enabled SubSurf at level 2 constantly from the beginning and didn't use a Mirror neither.

此外，利用刀工具在頭部中間進行兩次切割，增加頂點以給整個頭部更多的細節。眉毛很簡單，只需擦掉我們最初看到的兩張臉，然后選擇并將兩邊擠壓到里面，縮小一點，然后再擠壓。你可以根據你想要的細節來做很多次。在這個視頻中你可以看到這個技巧。

Also, a Knife tool was used to cut the head twice in the middle, adding vertices to give more detail to the whole head. The eyebrows are simple, just erase the two first faces that we had, select and extrude the edges to the inside, scaling down a bit, and extruding again. You can do this as many times as you like, depending on how much detail you want in there. In this video you can see this technique.

現在，讓我們把眼睛放進去!這些眼睛來自于我的另一個角色，在下面的圖片中展示了他們是如何被制造出來的。

Now, lets put the eyes in! Those eyes are from one of my other characters, in the image below shows a brief way to how they have been made.

為了制作嘴巴，我開始水平切割頭部，兩次，然后擠壓內部，調整大小，最后擦除。選擇面，然后選擇邊界邊，再次擠壓，制作嘴唇。現在你可以繼續切割，調整頭部的形狀，因?yàn)樗�看起�?lái)不像馬。更像一只鴨子!

To make the mouth, I started cutting the head horizontally, twice, then extruding inside, resizing, and finally erasing  the selected faces, then I select the border edges and extruded again to make the lips. Now you can keep cutting,
and tweaking the head's shape, because it still doesn't looks like a horse.. but more like a duck!

提示：試著在嘴周圍切更多的東西，這樣它就會看起來更有厚度，并且更容易移動，然后再做一些表情。此外，它還能給模特更多的個性（大眼睛和不同大小的眼睛，耳朵，大鼻子和小嘴巴，反之亦然）。如果你想讓下巴看起來很蠢（比如Antonio），你可以讓下巴變小，因?yàn)槟憧梢钥吹礁�多的牙齒。不同的眼睛，奇怪的眼神。

Tip: try cutting more around the mouth, so that it will have more thickness and it will be easier to move and make some expressions with later. Also it will help to give the model more personality (big eyes and different size for each one, the ears, big nose and small mouth, or vice-versa). Either you could make the jaw smaller if you want to make it look really stupid (like Antonio), because you can see the teeth more. Different eyes, weird looking.

為了完成頭部，我添加了一些簡單的耳朵，下面的圖片中解釋了這些耳朵的造型（是的，我喜歡圖片：D，比我的文字沒那么乏味）。

To finish the head, I added some simple ears which modelling is explained in the image below (yes I like images :D less boring than my text).

正在進行的一項工作，以顯示這個小家伙正在看這個舞臺。

A work in progress render, to show how far this little fella is looking at this stage.

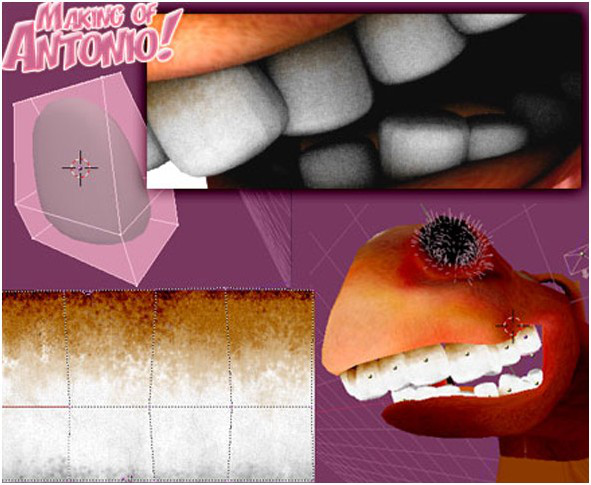

牙齒是被復制的(連接的)放在一起，用“RR”(意味著R兩次)在自己的中心旋轉。

The teeth are just a couple of duplicated (linked) teeth put together by hand, rotating over its own centre with "RR" (means R twice..).

對身體進行建模，但沒有什么復雜的東西。尾巴和腿有幾個小的調整(和擠壓)，一旦我有了循環，我開始進行腿部制作，再一次擠壓。

Modeling the body was as simple as pressing the "E" button while following the picture in the background, nothing really complex. A few minor tweaks (and extrudes) for the tail and legs, once I had the loops right I started on the legs, once again, extruding.

正如你在視圖中所看到的，腿遵循著同樣的循環，這些循環來自上體。為了避免對稱的外觀和形狀（后腿與前腿有很大的不同），只制作了一條腿，后來又做了復制調整。

As you can see in the wire view, the legs follow the same loops that come from the upper body. Just one leg was modelled and later duplicated/tweaked for avoiding the symmetrical look, and shape (rear legs are quite different from the front ones).

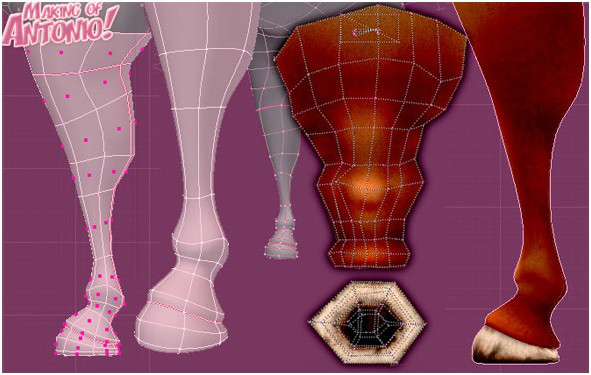

在截圖中你還可以看到腿和腳的UV貼圖，當時Blender沒有能力制作多UV，今天的紋理任務會更簡單!

In the screenshot you can also see the UV mapping for the leg and hoof, at that time Blender didn't have the ability to make MultiUV's, today the texturing task would be so much easier!

另一個WIP渲染，頭部和身體最終完成。讓我們給這只裸露的動物穿上衣服。

Another WIP render, head and body are finally done. Let's put some clothing on this naked animal

制作這種布料就像從身體中選擇幾個頂點一樣簡單，用Shift + D復制，沿著法線(Alt + S)縮放，然后將“P”分離成一個新的物體，擠壓出邊界，并對邊緣進行微調。在下圖中，你可以看到在復制之前的不同步驟，當擠壓時，以及最終模型的外觀。

Making the cloth was as easy as selecting a couple of vertices from the body, duplicating with Shift + D, scaling a little along the normals (with Alt + S), and "P" to separate into a new object, extruding down the borders and some tweaking on the edges. In the image below you can see the different steps before duplicating, when extruding, and how the final model looks.

干凈的模型,沒有紋理。

Clean model, no textures.

這里談?wù)摷y理不多,只有一個顏色的貼圖,和下降的混合紋理效果(這是解釋在本教程中�？偸鞘褂肙ren-Nayar作為著色器。記住，Oren-Nayar是你的朋友!=)

There's not much to talk about texturing here, just one colour map, and a Blend texture for the FallOff effect (which is explained in this tutorial . Always using Oren-Nayar as shader. Remember, Oren-Nayar is your friend! =)

當整個模型和布料紋理完成后，是時候添加頭發了。這里不解釋，因?yàn)槲矣玫倪@個系統不再用了，它被一個全新的系統取代了，這里有更多的信息:

Once the whole model and cloth textures were done, it was time to add hair. Won't explain here because the system I used in this guy is not used anymore, it was replaced with a *totally* new system,?more info here:

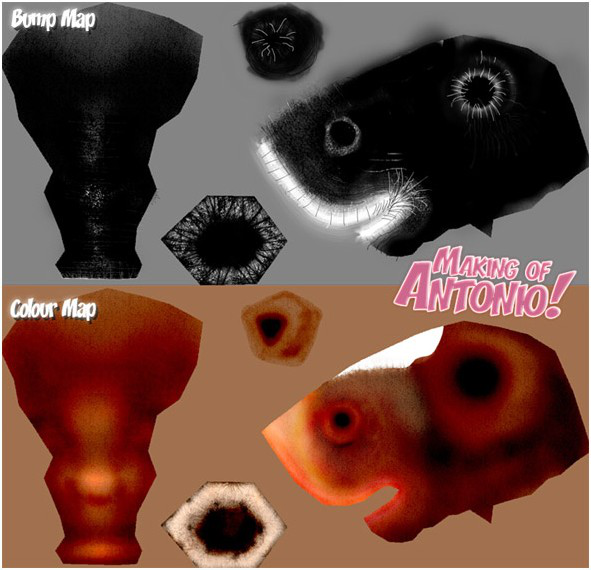

馬的紋理，凸起和彩色貼圖，我知道它們很可怕，那是幾年前的事了!

Textures for the horse, bump and colour map, I know they are awful, it was years ago!

同樣的，現在它可以變得更好，在這里，我用格來做布料，在底部有幾個鉤子(空)來固定形狀，是的，我知道…這是丑陋的!,但照明是一個簡單的立方體制作的點燈，使用陰影緩沖，和環境遮擋(它是一個新的當我做這個角色所以我使用它到處)，現在我們可以使用新的環境遮擋。

Again, nowadays it could be so much easier (and better) to make, in this rig I used Lattices for the cloth, and a couple of hooks (empty) at the bottom for fixing the shape, yes.. I know... it's UGLY!, but well.. it worked! The lighting was a simple cube made of Spot type lamps, using Shadows buffer, and Ambient Occlusion was used (it was kinda new when I made this character so I used it everywhere), now we could use the new great Approximate Ambient Occlusion

然而，這個角色（以更高的分辨率）在半小時內，在AMDDuron750Mhz上渲染，320mbRAM。這里混合了文件，但是這個角色需要用新的版本來修正，因?yàn)樗�是�?005年制作的，頭發和裝備沒能保存下來。希望你喜歡！

However this character rendered (in higher resolution) in half an hour, on a AMD Duron 750Mhz, 320mb RAM..blend files here but this character needs a *lot* of fixing with new versions, since it was made in 2005, hair and rigging didn't survive the time.
Hope you like it!
