創意咖啡杯的制作過程

您好，我的名字是Moumene Sofian，我想指導您完成我們在Carioca Studio制作的我們的圖像的創作過程。 它是在維也納DDB機構的幫助下為麥當勞做的。

Hello, my name is Moumene Sofian and I'd like to guide you through the creation process of one of our images made here at Carioca Studio. It was made for McDonald's with the help of the DDB agency in Vienna.

Before I start with the walkthrough, I want you to know that this image was made as part of a 3 image campaign, and the other two images you can see here below.

在我開始演練之前，我想讓你知道這張照片是作為3圖像廣告系列的一部分，另外兩個圖片可以在下面看到。

The complete set of visuals made for McDonald's

為麥當勞制作的完整視覺效果

The idea and rough sculpting

The brief came from the DDB Tribal agency group in Vienna, and after we sorted out the details we started to build the characters in ZBrush. The characters were made by my talented colleague Mihai Mihail.

We loved the idea of the ad as soon as we read the brief. The ad was for McCafe and the idea was that the bigger the cup the stronger the waking state ? in this case this was generated by different noise sources: i.e. animals, race cars and musicians.

First we gathered references for the modeling stage and we tried to choose the best-fitting characters to tell the story.

The character creation process was a long one mainly because of the huge number of characters and because they had to be expressive and have enough detail to make you keep looking at them and discover each little story. It took around 4 weeks for each visual so we had lots of going back and forth with the agency until everything was right.

理念和粗糙的雕刻

簡報來自維也納的DDB部落機構小組，在我們整理了細節后，我們開始在ZBrush中構建人物。 這些角色是由我有才華的同事Mihai Mihail制作的。

一旦我們閱讀簡報，我們就喜歡廣告的想法。 這個廣告是針對McCafe的，而這個想法是，杯子越大醒來的狀態越強烈嗎？ 在這種情況下，這是由不同的噪音源產生的：即動物，賽車和音樂家。

首先，我們收集了建模階段的參考資料，我們嘗試選擇最適合的人物來講述故事。

角色創作過程是一個漫長的過程，主要是因?yàn)槿宋飻?shù)量龐大，因?yàn)樗麄儽仨毦哂斜憩F(xiàn)力，并擁有足夠的細節，讓你繼續關注他們，發現每一個小故事。 每個視覺大約需要4周的時間，所以我們有很多來往的機構，直到一切都正確。

The ideas for each of the animal, musician, and racer elements of the scene

每個動物，音樂家和賽車手元素的想法

Concepting

The concepting was made in ZBrush. We used DynaMesh because it is so easy to work with, and then retopologized inside ZBrush to better add details. At the end we decimated and exported all the characters.

概念

這個概念是在ZBrush中做出的。 我們使用DynaMesh，因?yàn)樗�很容易使用，然后在ZBrush內重新進行了動態化，以更好地添加細節。 最后我們刪除并導出所有的字符。

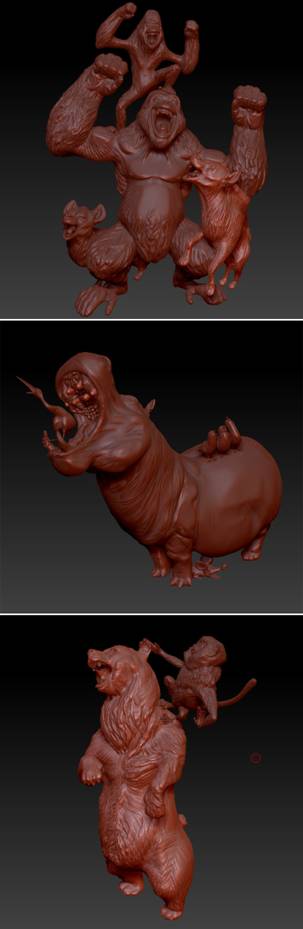

Some of the individual concepts for the animals

動物的一些個人概念

Polygons

At this stage we had to find a balance between the number of polygons and the details, because we had to limit the polygons in order to contain all the characters (there were roughly 30-35 characters). The final scene had around 25-35 million polygons. For the very heavy characters I decimated them further just in the viewport with the help of the pro-optimizer modifier from 3ds Max.

多邊形

在這個階段，我們必須找到多邊形數量和細節之間的平衡，因?yàn)槲覀儾坏貌幌拗贫噙呅我园�含所有的字符（大約有30-35個字符）。 最后的場景有25-35萬多邊形。 對于非常沉重的角色，我們在3ds Max的pro-optimizer修飾符的幫助下，在視口中進一步刪除它們。

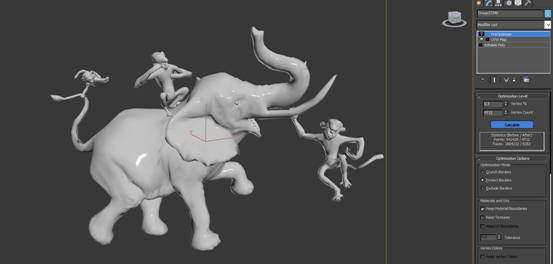

Working on reducing the polygons to fit them all into the scene

努力減少多邊形，使其全部融入現場

The cup

Then we took some references from the internet and modeled the coffee cup and distorted it to fit the camera angle and character layout.

杯子

然后，我們從互聯網上獲得了一些參考，并對咖啡杯進行了模擬，并扭曲了它，以適應相機的角度和角色布局。

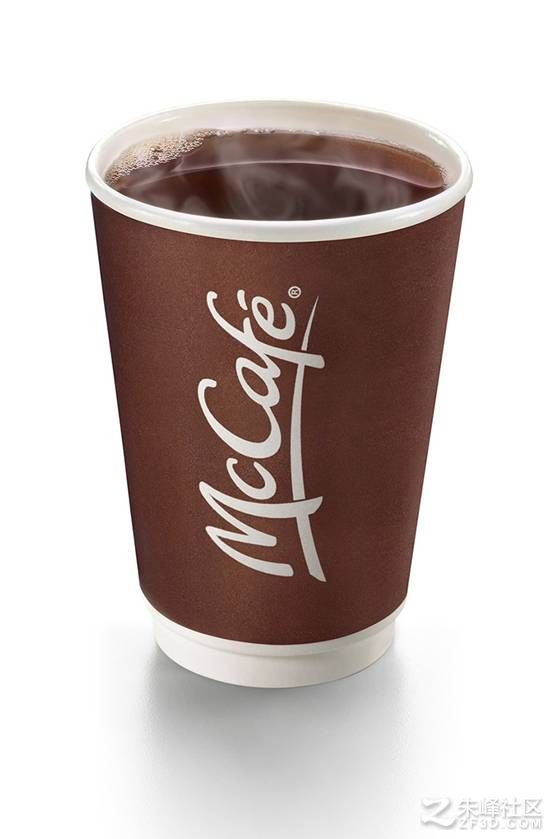

Making the coffee cup using references from the internet

使用互聯網的參考來制作咖啡杯

The coffee

The coffee base and added environmental features like grass, were made partly in ZBrush and partly in 3ds Max. We used MultiScatter for the rocks.

咖啡

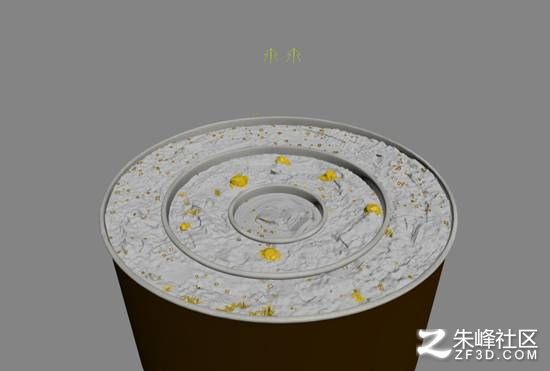

Adding environmental features to the coffee base

在咖啡基地添加環境特征

Lighting

After we finished the modeling process and the agency approved the final scene layout, we started to light the scene. We used the HDR light studio because it is a very quick and reliable lighting tool.

Lighting was more of a trial and error process because of the large number of characters and their circular arrangement. Although it was not a complex light setup because we only used a single HDR map, it took some time to fit the light in order for each character to look good.

燈光

完成建模過程后，機構批準了最終場景布局，我們開始點亮現場。 我們使用HDR燈光工作室，因?yàn)樗�是一個非常快速和可靠的照明工具。

照明更是一個試錯過程，因?yàn)榇罅康娜宋锖退麄兊难�環安排。 雖然它不是一個復雜的燈光設置，因?yàn)槲覀冎皇褂靡粋�單一的HDR地圖，花了一些時間來適應光線，以使每個角色看起來不錯。

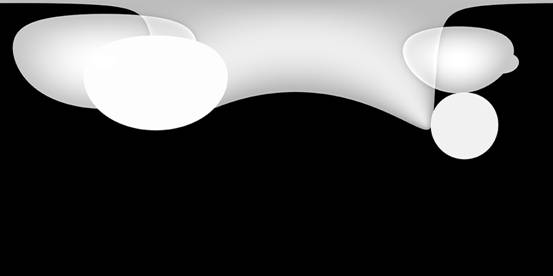

The HDR map used to light the scene

HDR地圖用于點亮場景

Texturing and shading

We skipped the unwrapping process of all the characters in order to gain some time. In its place, we just applied a UVW map modifier in 3ds Max because we used a shader with a fingerprint map made by Pablander in the Glossiness slot and in the Bump slot.

Finding the shaders was a trial and error process and in the end we tried several shaders. First we tried a simple gray shader but it didn't create the feeling we wanted ? although the characters were very readable. Then we tried a liquid coffee shader but of course it was a mess because you couldn't understand the shapes well.

In the end we used the clay shader and added some more detail to it with a normal map with wrinkles and a fingerprint map to the bump slot, and it created the effect we wanted to achieve.

紋理和陰影

我們跳過了所有角色的展開過程，以獲得一些時間。 在它的位置，我們剛剛在3ds Max中應用了一個UVW地圖修改器，因?yàn)槲覀兪褂昧艘粋�著色器，它由Pablander在光澤槽和Bump槽中制作的指紋圖。

尋找著色器是一個試錯過程，最后我們嘗試了幾個著色器。 首先我們嘗試了一個簡單的灰色著色器，但它并沒有產生我們想要的感覺。 雖然字符很可讀。 然后我們嘗試了一個液體咖啡著色器，但當然這是一個混亂，因?yàn)槟悴荒芎芎玫亓私庑螤睢?/p>

最后，我們使用粘土著色器，并添加了一些更多的細節，其中具有皺紋和凹凸槽的指紋圖形的法線貼圖，并創建了我們想要實現的效果。

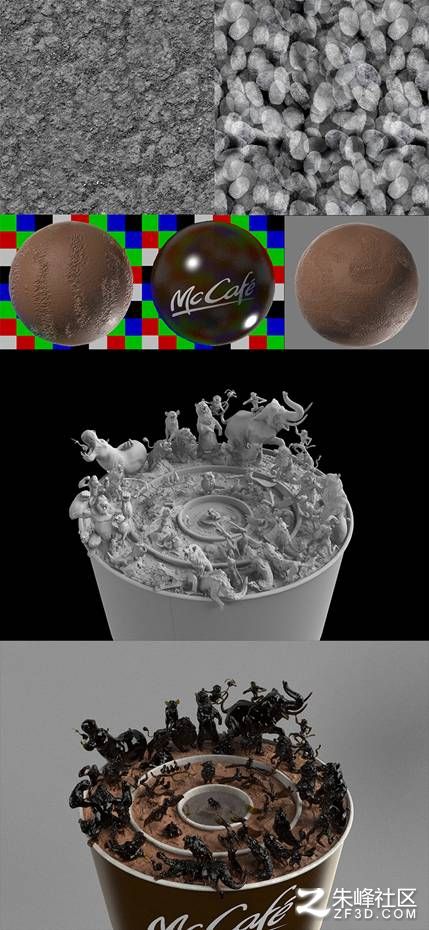

Texturing the scene using shaders and a fingerprint map

使用著色器和指紋圖紋理場景

Render and post-production

The render was at 8,000 x 5,000 pixels and had as many V-Ray channels as we needed for the post-production stage. The post stage was made as usual in Photoshop and it was a straightforward process ? nothing too fancy. It consisted of color corrections and a depth of field effect and some background editing.

渲染和后期制作

渲染為8,000 x 5,000像素，并具有與后期制作階段相同的V-Ray通道。 后期在Photoshop中照常進行，這是一個簡單的過程？ 沒有什么太花哨 它包括顏色校正和景深效果以及一些背景編輯。

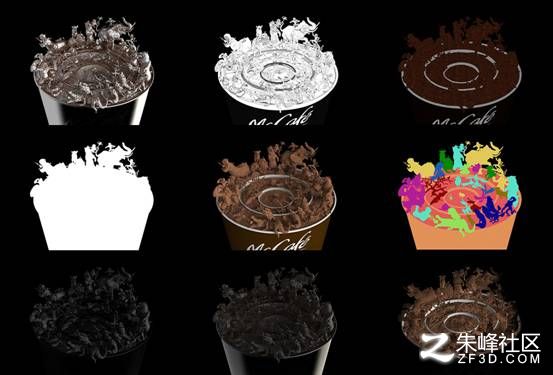

Some of the render passes used for post-production

一些渲染過程用于后期制作

Conclusion

It was fun to work on this project and we all learned a lot. For me, the challenge was lighting multiple characters with the same HDR.

結論

這個項目很有趣，我們都學到了很多東西。 對我來說，挑戰是使用相同的HDR照亮多個角色。
